Thermal camera THC 40

Introduction

Using the most advanced uncooled infrared technology, THC Series can be used in darkness and in fog or rain. Adopting the 4th generation of uncooled infrared detector, and the most advanced optical and electronic system, THC-40 series can penetrate dusts, fog, rain, snow and darkness, and can provide nice images. THC  has being widely used in many fields, such as Rail way, Police, Frontier Defense, Fire protection and Electric power etc.

Main Features

The detector has a higher resolution: 324x256,
2X electronics Magnification,
Two seconds driving time makes the device used quickly without waiting; Can output the pseudo color image;

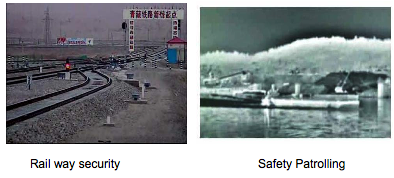

Effect Display


Model         THC 40 uncoooled thermal camera.

Angle of vision    17.3°×13°

Electronic Magnification   2X

Spectrum Range   8~14um

Effect distance(people)  640m

Effect distance(vehicles)  1760m

Detector  324×256/ 384×288 uncooled infrared detector

Image processor   Automatic Gain Control (AGC)  Digital Detail Enhancer (DDE) ,Pseudo Color

Video output  PAL / NTSC composite video

Connector type  BNC video output

Power suppl  220VAC,24VDC(customization)

Operation temperature  - 20°C ~ +75°C

Interface  NTSC (PAL) output, 9VDC input

Weight  2.75 kg

Shape  251.5mm×154mm×150mm

Pan-tilt head speed

Pan: 1.2~60°/s ,Tilt :1.5~40°/s

Pre-setting points

128 sites , 6 cruising paths

Scan speed  0.5~30°/s
