LM1-650R ä en rejäl och robust OEM laser för inbyggnad där kraven är lite högre än normalt. Den klarar flera DIN standarder i vibration coh stöt. DIN EN 60068-2-6 Standard i vibration och DIN EN 60068-2-29 Standard i slagtest.
Laser Diode Modules Key features
The LM1-650R is a red dot laser module subassembly with collimated beam. The maximum laser output power is 1.0 mW at 650nm.

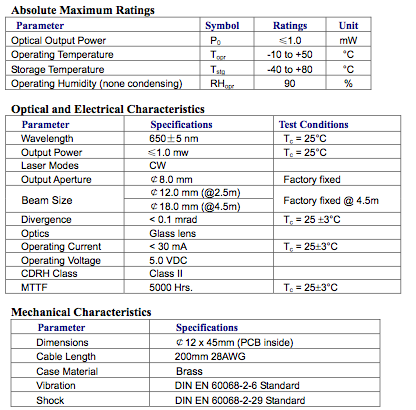

Features
- Wavelength: 650±5 nm
- High brightness, optical output power: ≤1.0mW
- Low operating current: <30 mA
- Low operating voltage: 5.0 VDC
- Class II laser, CDRH/ROHS compatible
- Static, Surge, and Reverse Polarity Protected
- Circuit control: Auto power control (APC)
- Operating Temperature: -10 to 50°C
