Thermo tracker auto tracker camera

This is an advanced thermal and CCD camera on a pan and tilt controlled by advanced software. System can operate untger almost any bad weather conditions as well as fine weather and see what is happening. Auto tracker software makes it posisble to automatically follow an object . This makes device easy and unique simple to operate.

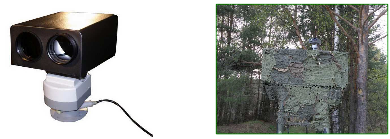

The complexunit consists of the video camera and the thermal imager, combined on the rotating platform.
The system is designed for observation and tracking people, animals, vehicles at any illumination levels and weather conditions.

Remote control of cameras and of rotating platform is performed manually, as well as using software complex for detection of movement, which enables automatic detection and guidance of moving objects.

  • Spectral range – 8...14 μm
  • Temperature sensitivity – 80 mK
  • Field of view using f=120mm lens – 8°
  • Focusing of the lens – remote, electric motor
  • Video output – CCIR or RS170, IEEE1394
  • Exposition and amplification – automatically or manually
  • Digital zoom – 2х and 4x
  • Supply voltage – 7...9 V
  • Consumed power – 4 W
  • TV sensor type – 1⁄2” ССD matrix
  • TV resolution – 570 TVL
  • Sensitivity of the camera – 0.16 lux
  • Shutter – auto (1/50....1/500000), manual
  • Amplification – auto (up to 28 dB), fixed level as selected
  • Lens – zoom lens 12-240 mm, auto diaphragm, electro-drive of focusing
  • Supply voltage – 12 V
  • Consumed power – 4 W
  • Angles of rotation of the platform – 0...350°
  • Angles of inclination of the platform – ±50°
  • Speed of rotation – 6° per second
  • Supply voltage – 220 V

For thermal imaging channel: range to an automobile: identification – not less than 700 m, recognition – not less than 1350 m, detection – not less than 5000 m.
For television channel at maximum zoom: range to an automobile: identification – not less than 1900 m, recognition – not less than 3500 m, detection – not less than 8500 m.
