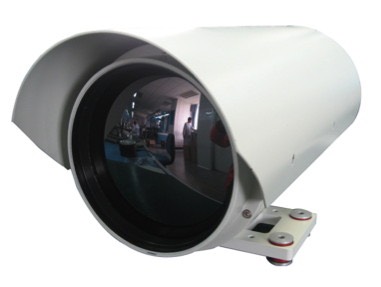

T-Cam 185 is an infrared thermal imaging system is designed for security and surveillance requirements. The thermal imaging camera is accompanied with 324×256 uncooled focal array detector and 36-180mm continuous zoom lens. It overcome fixed focus or dual field of view thermal camera shortcomings. Continuous zoom can make imager clearly and stable performance.
T-Cam 185 thermal imaging camera has hard and sealed shell, with nitrogen inside, can penetrate rains and dusts and can work normally in harsh environment. Combining 4th generation of uncooled focal plane array infrared detector, advanced electronic and optic system, Camera can penetrate haze, smoke, rain, snow and darkness and offer perfect image.
Features
- Uncooled microbolometer infrared focal plane arrays, 324×256 pixel
- High sensitivity, NETD at 50mk
- 5X continuous zoom, which can search for large scale or distinguish objects far away.
- Low power consumption, quick start-up, stable performance, image with high uniformity
- Manual adjust brightness / contrast/ Gamma
- Auto/Manual/ Background correction
- Dynamic Detail Enhancer (DDE) function; output white hot/black hot/color palette
- 2X electronic magnification
- Reticle display
- RS 485 serial interface, analog video signal output
- Sealed shell, smart shape, nitrogen inside, anti-harsh environment
- MIL spec in several levels in some details and very solid and rugged design
Camera technical features and design
Detector Type Uncooled FPA, 324×256 pixel
Spectrum Range 8～14μm
Lens 36～180mm Continuous Zoom
FOV 3.9°×2.9°～19°×14.5°
IFOV 0.21mrad～1.05mrad
NETD 50mK@F1.0, 300K
Frame 25Hz
Electric Magnification 2×
Focusing Electric Focus,Electric Zoom
Image Processing Digital Detail Enhancement (DDE)，pseudo color
Video OutputPAL
Connector type BNC(1) video output
Power supply 12VDC
Power consumption
Normal 8W，Start up peak value 36W
Communication interface RS-485（PELCO-D protocol,，baud rate 2400bps）
Weight 7kg
Size 440mm×213 mm×217mm
Operation Temperature -25℃～55℃
Storage Temperature -50℃～65℃
Rain Rain diameter 0.5～4.5mm,15min
Anti-impact GJB 150.18A-2009
Anti-vibration GJB 150.16A-2009
Electromagnetic compatible GJB 151A-972.5
Objects and range to see Detect distance Identification Recognition
people（1.8m×0.5m） 2800m 700m 350m
vehicle（2.3m×2.3m） 8000m 2000m 1000m
Installation advises
Before installation, please check if the environmental temperature, humidity, cleanliness, anti-jamming, anti-lightning etc. meet the requirements, check if the power supply is safe.
1. Anti-static
Keep suitable temperature and humidity conditions
2. Anti-jamming
- Keep the night vision camera far away from the radio transmitters, radar transmitters and other high-frequency devices
- Adopts electromagnetic shield when necessary
- Anti-lightning
- The lines’ lightning-proof design must be considered integrated with the building lighting-proof requirements, and must comply with the national standards and industry standards
- The ground system must meet the both anti-jamming and electrical safety requirements, and must not short connect or mixed connect to the electrical network zero curve.
- When the system connect GND separately, the grounding resistance must be less than 4Ω, grounding conductor cross-sectional area must be more than 25mm²
- Water-proof
External lines must be connected to the aviation plug firmly to proof water in, or the camera will be damaged.
- Bearing
The night vision camera needs to use pole or arm to burden its weight, so you must make sure the pole or arm can withstand the weight more than 20kg.
