T-Cam IR-75 high level themal camera

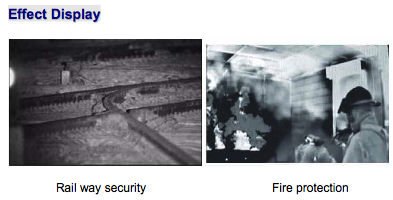

Using the most advanced uncooled infrared technology, IR 75 can be used in darkness and in fog or rain. Adopting the 4th generation of uncooled infrared detector, and the most advanced optical and electronic system, T-Cam IR series can penetrate dusts, fog, rain, snow and darkness, and can provide nice images. T-Cam has being widely used in many fields, such as Rail way, Police, Frontier Defense, Fire protection and Electric power etc.
Normally camera have a good PT unit that can controll the camera operation.
Main Features
The detector has a higher resolution: 324x256,
2X electronics Magnification,
Two seconds driving time makes the device used quickly without waiting;
Can output the pseudo color image.
Model T-Cam IR75
Angle of vision 9.27°×6.96°
Electronic Magnification 2X
Spectrum Range 8~14um
Effect distance(people) 1200m
Effect distance(vehicles) 3300m
Detector 324×256/ 384×288 uncooled infrared detector
Image processor
Automatic Gain Control (AGC) Digital Detail Enhancer (DDE) ,Pseudo Color
Video output PAL / NTSC composite video
Connector type BNC video output
Power supply 220VAC,24VDC(customization)
Operation temperature - 20°C ~ +75°C
Interface NTSC (PAL) output, 9VDC input
Weight 3.2kg
Shape Camera unit 280mm×154mm×150mm
Pan-tilt head Pan: 1.2~60°/s ,Tilt :1.5~40°/s speed
Pre-setting points
128 sites , 6 cruising paths
Scan speed 0.5~30°/s
